Truck four wheel alignment

Product Details

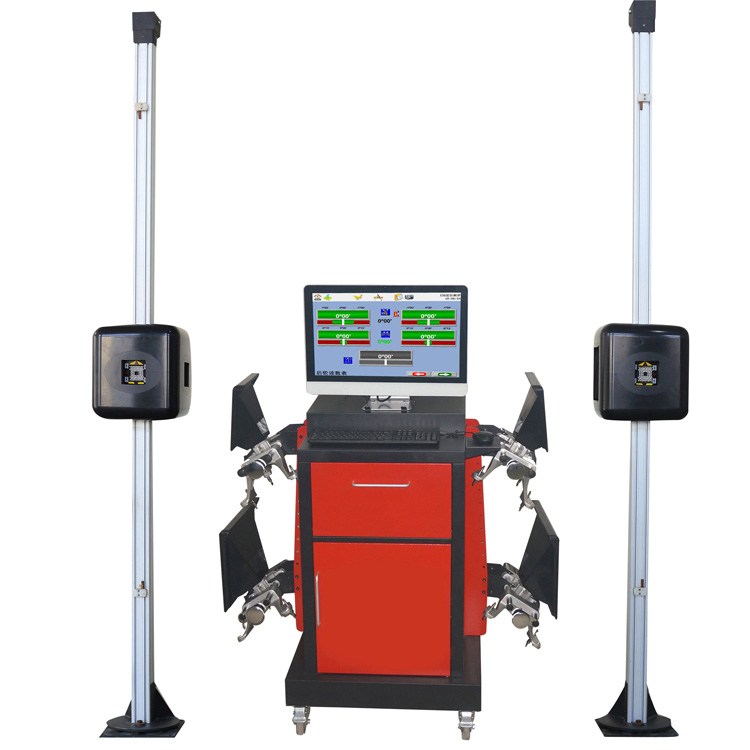

Truck four wheel alignment

Truck four wheel alignment Truck four wheel alignment Truck four wheel alignment Truck four wheel alignment

Specifications:

Measurement item Measuring range Measurement accuracy
Front wheel total toe ±20° ±0.01°
Rear wheel total toe ±20° ±0.01°
Front wheel camber angle ±12° ±0.02°
Rear wheel camber angle ±12° ±0.02°
Back rake angle ±25° ±0.05°
Kingpin internal inclination angle ±25° ±0.05°
Retraction angle ±10° ±0.01°
Thrust angle ±10° ±0.01°

Features :

  • Advanced software allows the camera to automatically track and adjust its height as the vehicle ascends and descends. The camera automatically captures the wheel target disk with high precision.
  • High-resolution, multi-processor camera technology delivers accurate, vivid positioning readings and diagnostic data.

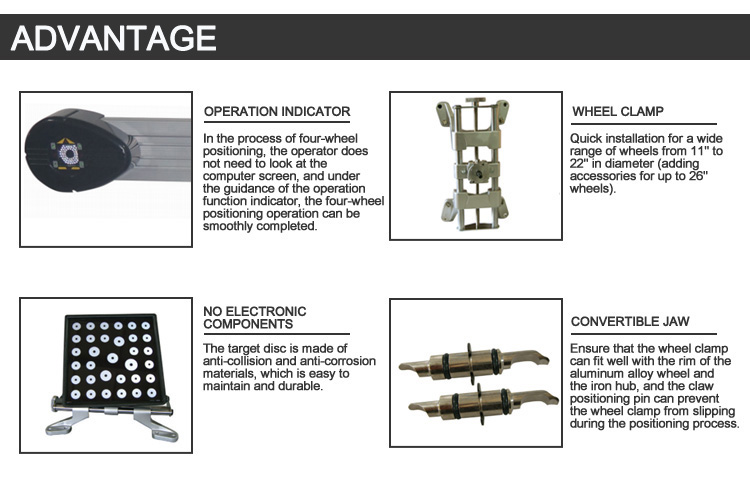

  • Target disk - no electronic components, replacing traditional electronic sensors, eliminating equipment failures caused by circuits.
  • Measurement process - When measuring, no need to compensate the steel ring, shortening the measurement time and improving the accuracy.
  • Software System - Easy to operate, read basic four-wheel alignment data in two minutes.
  • Maintenance - Maintenance is simple and easy, and the equipment does not need to be regularly calibrated.
  • The vehicle data has the original vehicle data and information of more than 20,000 models in the past 30 years, enabling operators to quickly and accurately find the appropriate model.
