Product Details

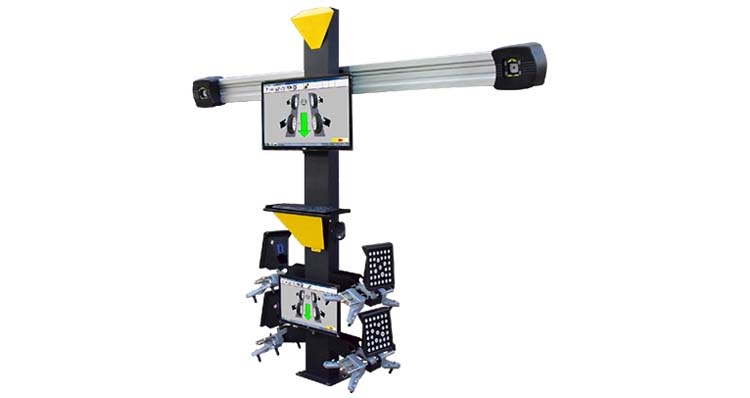

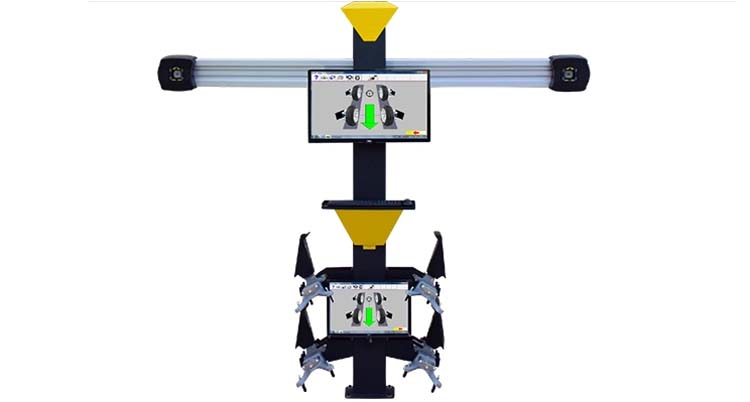

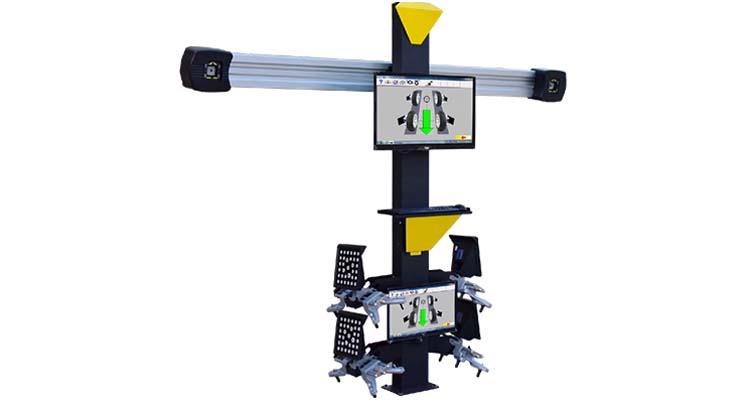

3D car four wheel alignment
|
Item
|
Accuracy Range
|
Measurement Range
|
||
|
Total Toe
|
±0.01°
|
±40°
|
||
|
Camber
|
±0.01°
|
±45°
|
||
|
Kingpin Caster Angle
|
±0.02°
|
±45°
|
||
|
Kingpin Inclination Angle
|
±0.02°
|
±45°
|
||
|
Thrust Angle
|
±0.01°
|
±40°
|
||
|
Set Back
|
±0.01°
|
±40°
|
||
|
Turn In & Turn Out
|
±0.02°
|
±50°
|
||
|
Track Width
|
±2mm
|
1219~2438mm
|
||
|
Wheelbase Width
|
±2mm
|
2006~4572mm
|
||
