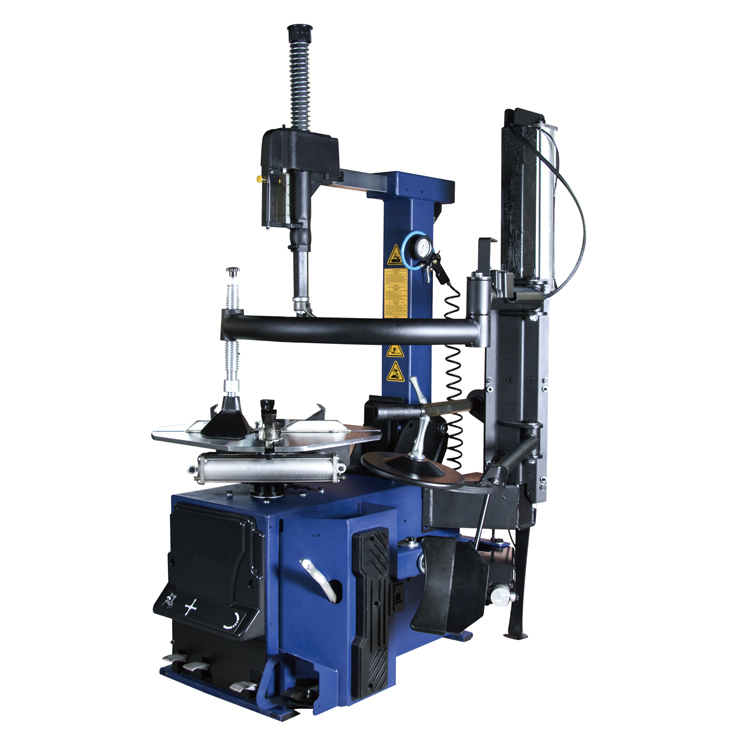

Tire Changer S-850CM

Product Details

Tire Changer S-850CM-ШИНОМОНТАЖНЫЙ СТАНОК АВТОМАТ

Tire Changer S-850CM

SPECIFICATION S-850CM
Rim Clamping Outer 10”-22”
Rim Clamping Inner 12”-24”
Max Tyre Diameter 1100mm/43”
Max Tyre Width 390mm/15”
Working Air Pressure 3.5 bar
Bead Breaker Cylinder Force 2500kg
Power Supply 220V/380V
Motor Power 1.1kw/0.75kw
N.W. 305kg
Dimension 1000*760*950/1370*400*370

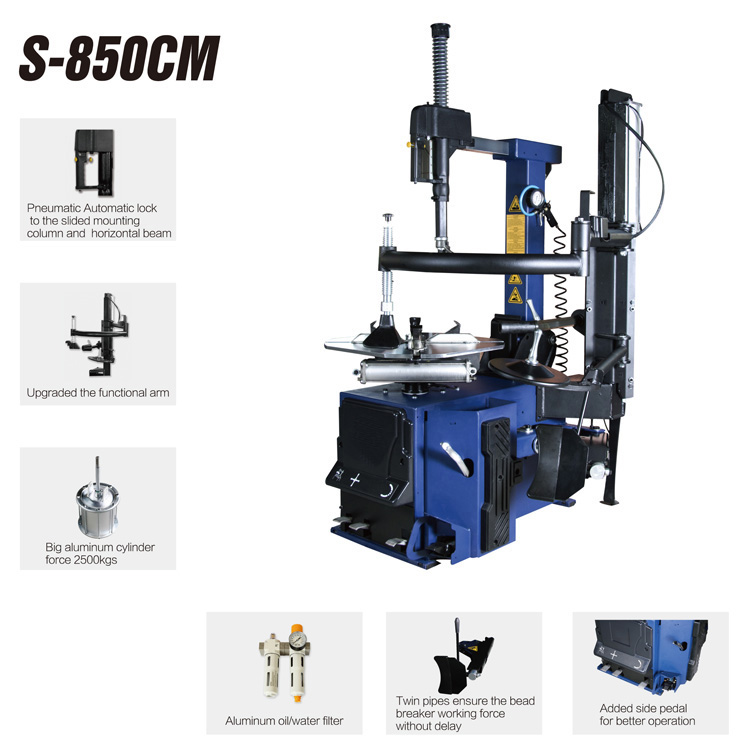

Full-laser cutting; all-aluminum large cylinder; all-aluminum explosion-proof oil and water separator; double-layer pull bars inside the box body; large arm once molding and drawer type all-aluminum pedal assembly.

Excellent quality and durable; fast and high efficient.

Reasonable structure and superior performance.

Be equipped with right assistant arm, 360 degree shovel and tire arm rotating with tire by 270 degree. Be convenient to demount and mount tire much faster.



Easy to demount and mount tire; explosion-proof flat tire.

Using all-aluminum turbine box and pure copper large power motor, designed by thicker assistant arm to comfortably deal with explosion-proof flat tire.

Designed with independent pneumatic locking six square bar and push-pull arm.

Much easier and faster to operate.

Due to the extremely high working frequency of six square bar, we use 45 high-strength steel with surface phosphate treatment technique, which is corrosion-resistant.

Backward machine type and strength of box body

Increase strength of box body

Box body use the welding technology of square steel clipped between in the double-layer steel plate. This makes the strength of box body increase by 40%, which ensure the whole machine’s high-strength of no deformation during the working of column backward type. And its oblique angle could be up to 45°.

Aluminum alloy cylinder

Use advanced aluminum alloy cylinder.

Much stronger and more durable.

Use aluminum alloy cylinder and the inner wall is mirror polished. Be of better seal and larger driving force. The hanger which connects the cylinder and turntable is made of accurate cast steel once molding technology, which is extremely durable.

Tire shovel

Tire shovel is working with large cylinder of 2500kg.

Much easier and faster to operate.

The tire shovel is designed with special shovel type and thicker integrated shovel arm, which help comfortably to deal with various hard tires.
