Cangzhou Shengshi Weiye Automobile Accessory co.,ltd.

Two Post Lift

Mechanical Dual-point Relesa Two Post Lift

Product Details

Mechanical Dual-point Relesa Two Post Lift

Mechanical Dual-point Relesa Two Post Life3

Mechanical Dual-Point Release ST-CB4000 Two Post Liift

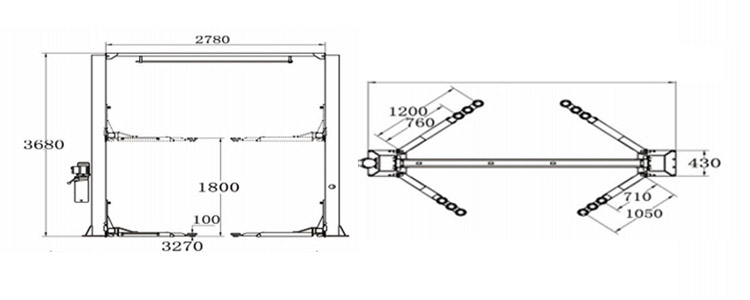

  Capicity   4000kg
  Lifting Height   1800mm
  Lifting time   60-65S
  Overall width   3270mm
  Overall height   3680mm
  Inside column   2780mm
  Voltage   380V/220V/110V
  Motor power   2.2KW
  Rated oil pressure   20Mpa
  Noise   ≤80dB

Mechanical Dual-point Relesa Two Post Life3

ST-CB4000 Two Post Liift Package

1.Machine package size            2. Motor unit package size

   length -----------3650mm               length ---------820mm
   width -----------450mm                   width -------- 310mm
   height-----------700mm                  height -------250mm
   weight ---------540kg                     weight -----22kg
Total Weight : 562kg

Mechanical Dual-point Relesa Two Post Life3 Mechanical Dual-point Relesa Two Post Life3

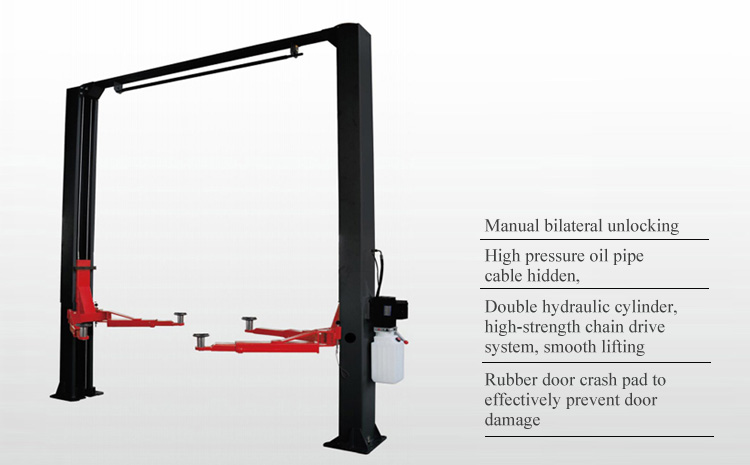

Post Lift Product Description

This machine is the largest domestic sales of a lift. With stable and reliable quality and reasonable price, it is an ideal lift for small and medium-sized repair factories.
Designed in accordance with international standards, the appearance is elegant. The verticality is good and the overall feeling is strong. Easy to install.
Designed according to international standards, in line with popular needs.
Double cylinder drive, chain, sprocket drive, smooth lifting.
A full-length protective cover is installed at the front end of the column to protect the safety of vehicle maintenance personnel.

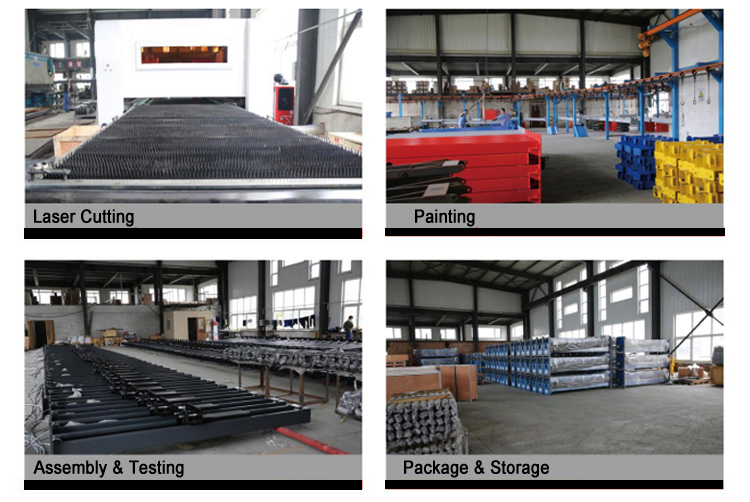

Post Lift Factory
