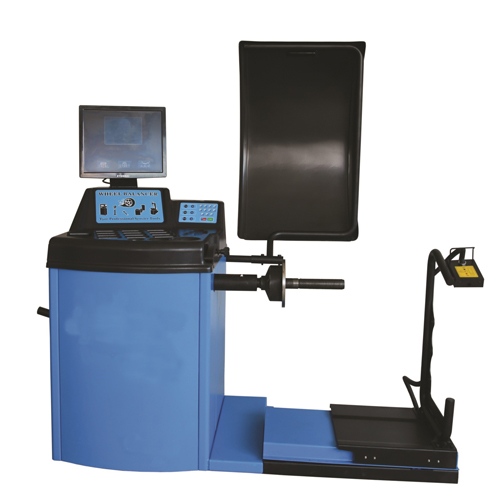

Balancing machine S-T 896

PIC-(Balancing machine S-T 896)

Balancing machine S-T 896


Power supply voltage:220 v / 50 to 60 hz.
Power: 0.3 Kw
Rotating speed: ~ 150 r. p.
Balance cycle: 10 s
Largest wheel weight: 100 kg
Rim diameter: 254 ~ 600 mm
Rim width: 38 ~ 508 mm
Largest wheel diameter: 1000 mm
Net weight/gross weight: 93 kg / 113 kg
1. According to the present larger, heavier tires for production
2. With high measurement precision, repetition measurement precision accuracy characteristics
3. 3 kinds of aluminum alloy rim selection model and static balance
4. High strength increasing casing, to ensure the stability of the measurement precision
5. 5 languages (Chinese, English, French, Italian, and west) interface
6. With functions of hidden and decompose the counterweight
7. Has the rim diameter and distance automatic measurement function
8. Use high quality Φ 40 balancing machine spindle, to ensure the accuracy of measurement and meet the requirements of large tires measurement
9. Make up for the most current balancing machine for large low tire balance accuracy of defects
10. Adopting level 6 big torque and low speed motor, can guarantee the stability of large tires start and brake and the safety of the operation
11. With functions of automatic detection and restoring the measuring precision of the calibration function
12. The standard 17 inch hd LCD monitor, and 3 d animation interface, and the bottom of the screen prompt, convenient operation
13. Optional 901 tyres elevator to facilitate large and heavy tires in balancing machine loading and unloading
S-T896
