Product Details

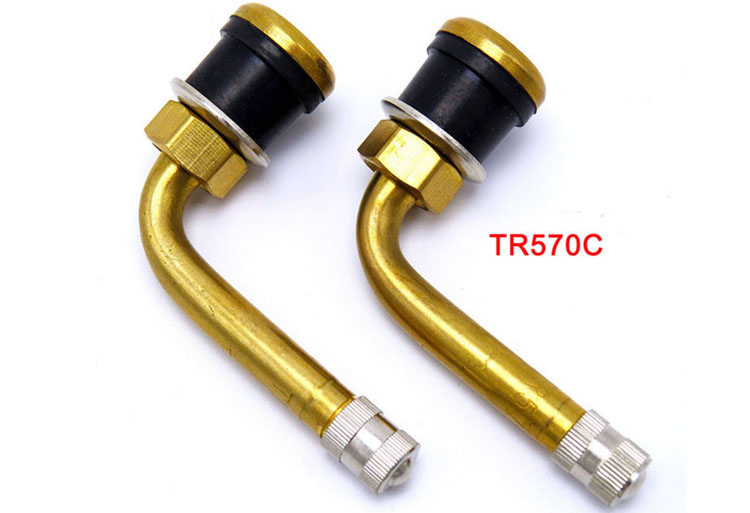

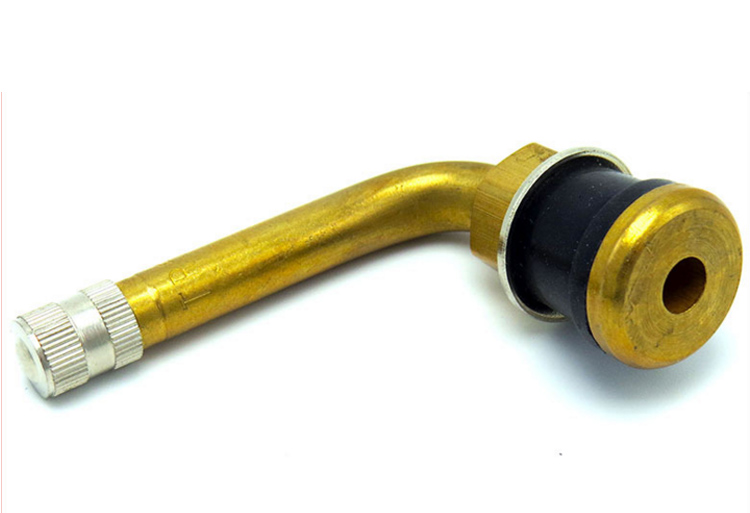

Tire valve TR570-C
| Product name | Truck tire valve TR570-C |
| Material | Metal |
| MOQ | 10000pcs |
| Application | Truck tubeless tire |
| Sample | Free |
| OEM | Available |
| Packing | 1000pcs/carton |
| ITEM NO | A (mm) |
RIM HOLE | PACKING (pcs/carton) |
PACKING SIZE(cm) | G.W (kg) |
| TR-500 | 51 | 15.9 | 800 | 31*23.5*18 | 25 |
| TR-501 | 38 | 15.9 | 1000 | 37*20*19 | 28 |
| TR-570 | 79.5 | 15.9 | 500 | 31*23.5*18 | 20 |
| TR-571 | 86 | 15.9 | 500 | 31*23.5*18 | 21 |
| TR-572 | 96 | 15.9 | 500 | 31*23.5*18 | 22 |
| TR-573 | 111 | 15.9 | 1000 | 31*23.5*18 | 23 |
| TR-574 | 127 | 15.9 | 1000 | 31*23.5*18 | 24 |
| TR-575 | 28.5 | 15.9 | 1000 | 30*20*16 | 26 |
Advantages
1. Our products are 100% tested and made of only the highest quality materials
2. Our factory is one of top leading manufacturers in China.
3. Belong to clamp-in tubeless valves
4. Cold, heat and ozone resistant
5. All the products of stem are painted with chemlok
6. We can produce any kinds of clamp-in tubeless valves according samples or drawing
Installation method
1. Remove valve core and deflate
2. Separate tire toe port and Unloaded from its rims
3. Remove tire valves
4. Clean the hole on the rim
5. Check and make sure the valve core is screwed.
6. Install the new tire valve from inner part of rims
7. Install correctly and inflate untill it reaches the rated pressure
8 . Screw on the new cap
